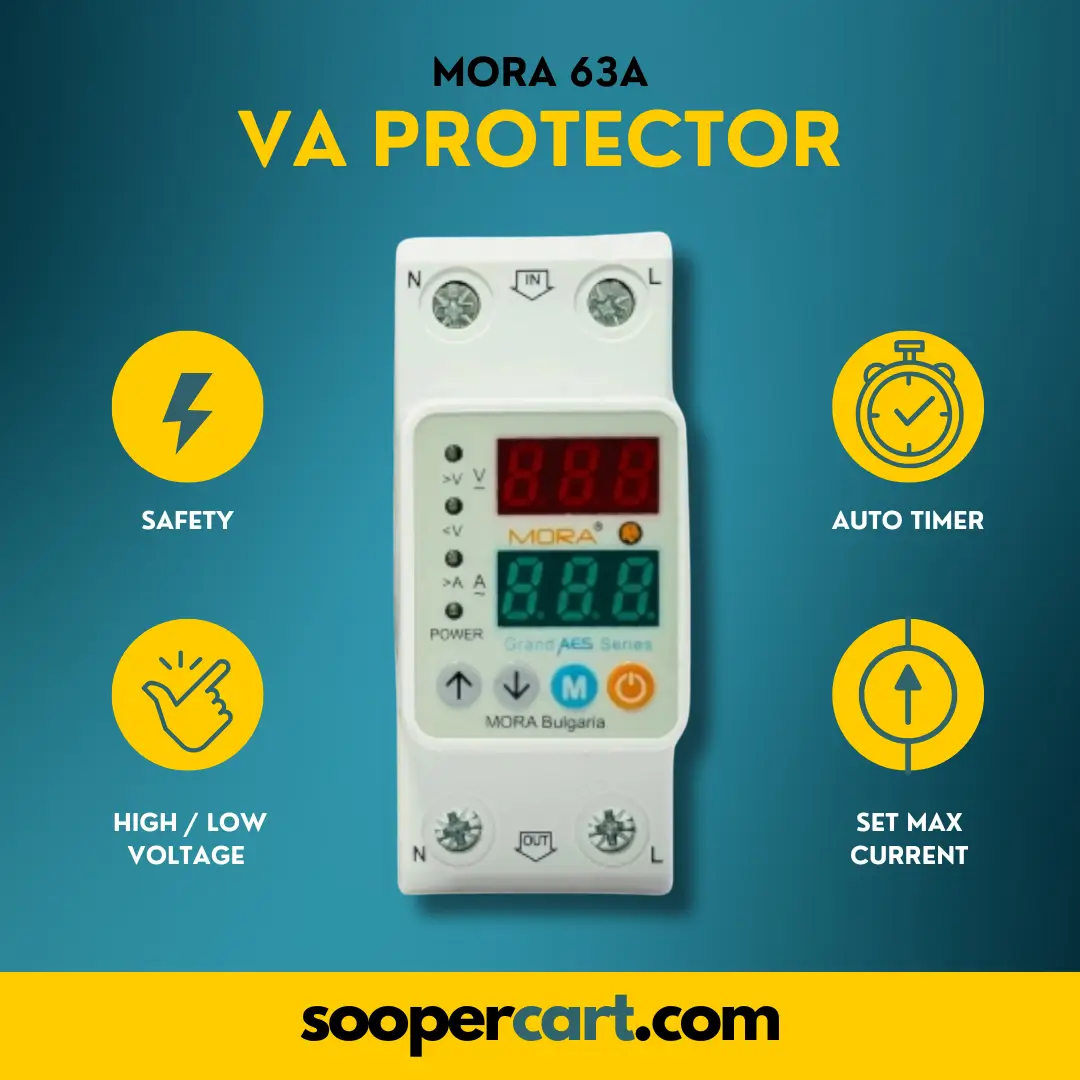

MORA 63A Voltage Protector – Adjustable Over & Under Voltage Relay Breaker with Overcurrent Protection | Time Delay | Solar & Home Use

Protect your solar systems and home appliances with the MORA 63A Voltage Protector – engineered for precision, safety, and durability.

This advanced voltage protection device from MORA (Bulgaria) offers fully adjustable over-voltage, under-voltage, and overcurrent protection for safeguarding sensitive electronics. It features real-time voltage and ampere display, a time delay system, and is ideal for solar inverters, battery systems, and household appliances.

The compact 8-modular design fits easily in distribution boxes and supports DIN rail mounting for quick and secure installation.

Technical Specifications (63A Model):

• Rated Working Current: 63A

• Rated Voltage: AC 230V, 50Hz

• Overvoltage Cutoff Range: AC 230V – AC 275V (Default: 275V)

• Undervoltage Cutoff Range: AC 160V – AC 220V (Default: 175V)

• Overcurrent Protection: Adjustable up to 63A (Default: 40A)

• Voltage Display Range: 70V – 400V

• Current Display Range: 0 – 99.9A

• Time Delay Function: Adjustable 0–30 seconds (Default: 30s)

• Short Circuit Withstand: 3000A (<40A), 4500A (>50A)

• Surge Withstand Voltage: Up to 5kV

• Power Consumption: <1.5W

• Mechanical Life: >100,000 operations

• Mounting Type: DIN rail, 8-module width

• Dimensions: 80 x 37 x 66 mm

• Operating Temp: -25°C to +55°C

• Humidity: 45–90% RH

• Altitude: <2000m

• Pollution Level: Class 2

Key Features:

• ⚡ Over/Under Voltage Protection – Prevents surges and drops

• 🔌 Adjustable Overcurrent Cutoff (up to 63A) – Customizable for your system

• 🔋 Real-Time LED Display – View voltage and current live

• ⏱️ Time Delay Function – Delays reconnection to prevent restarts

• ☀️ Ideal for Solar Systems – Use with inverters and battery setups

• 🛠️ Compact DIN Rail Design – Fast and easy installation

• 💪 Surge-Resistant up to 5kV – Extra layer of safety during storms
